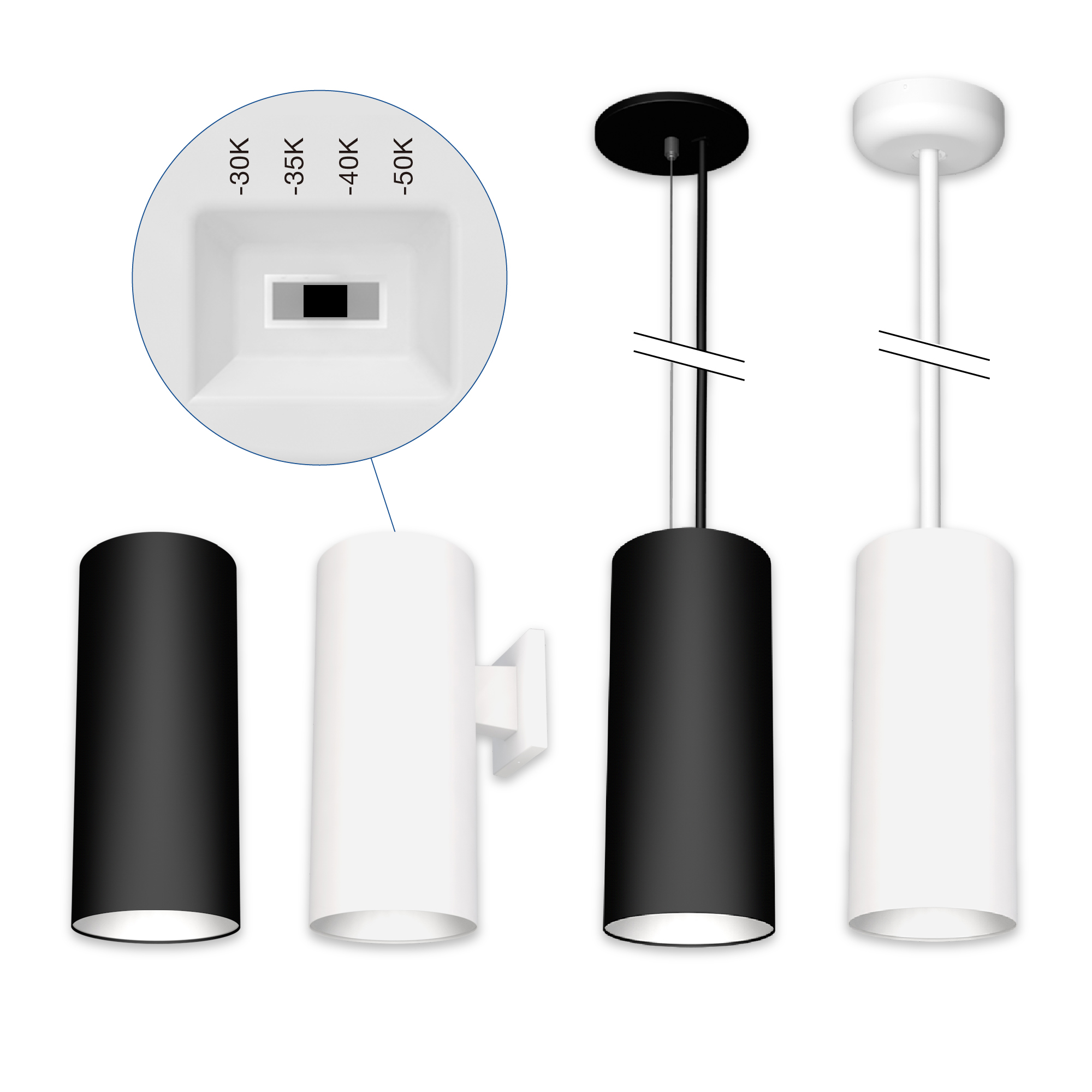

llumus, GREEN CREATIVE’s PXCYL High-Output, Field-Selectable CCT Cylinders provide an output of up to 10,000 lumens. Available in field-selectable CCT or fixed CCT output and medium and wide optical distributions, it offers four mounting types including surface mount, wall mount, pendant, and suspension. It also supports a wide operating ambient temperature from -25 deg to 45 deg Celsius (-13 deg to 113 deg Fahrenheit.).

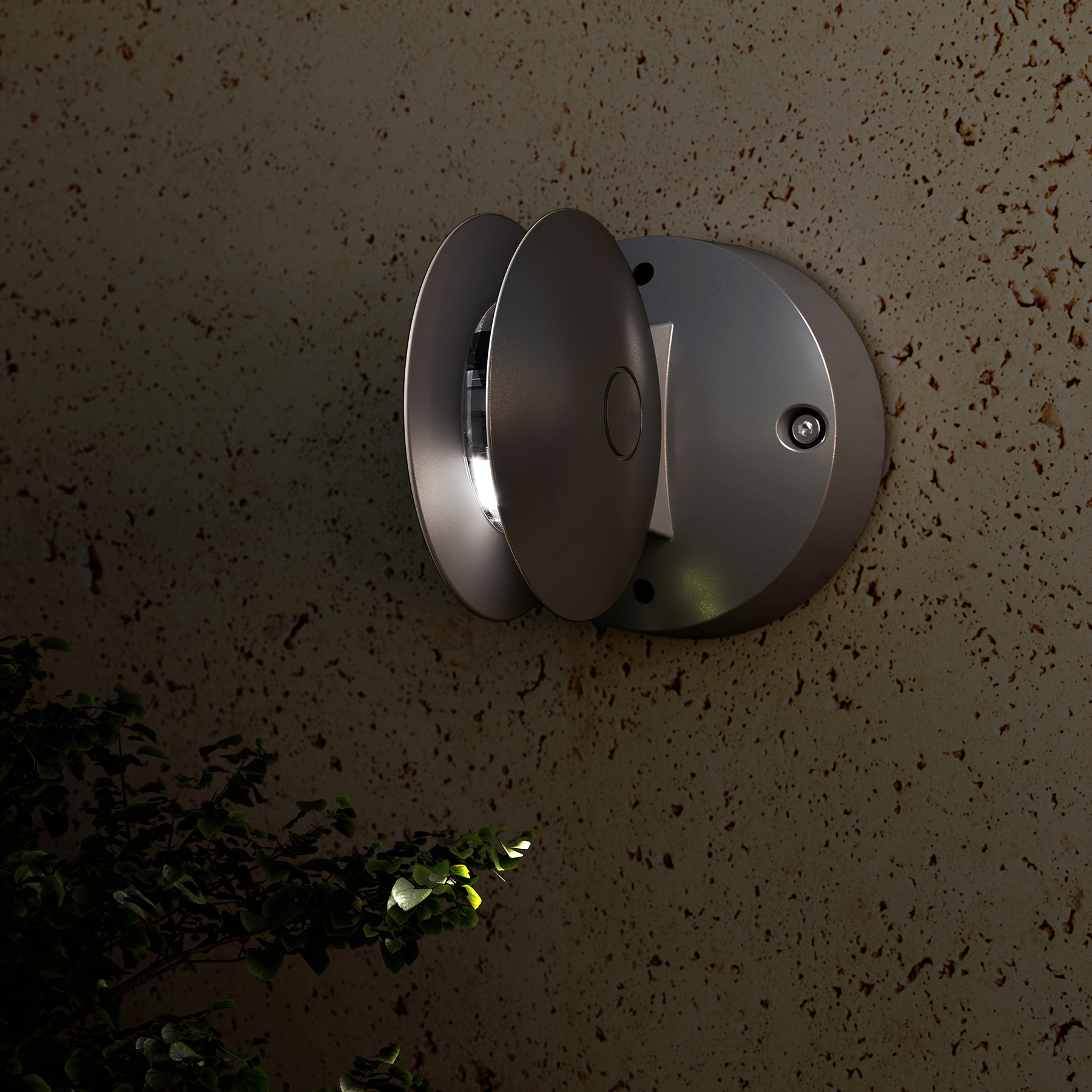

iGuzzini’s Trick Emotion is a unique 360-deg sectorized blade optic with DMX-RDM controls. It’s the first architectural fixture to feature a patented optic divided into 10 individually controllable sectors for dynamic lighting effects from a single point. The Trick Emotion delivers a precise, glare-free blade of light using a toroidal piano-convex lens with a micro-prismatic surface and internal shielding, achieving up to 23 footcandles (fc) at 4 ft with zero spill light. It offers the most flexible aiming in its class with 360-deg horizontal rotation +/-10-deg tilt, and three mounting options. It is rated IP66 and IK07 for robust outdoor performance.

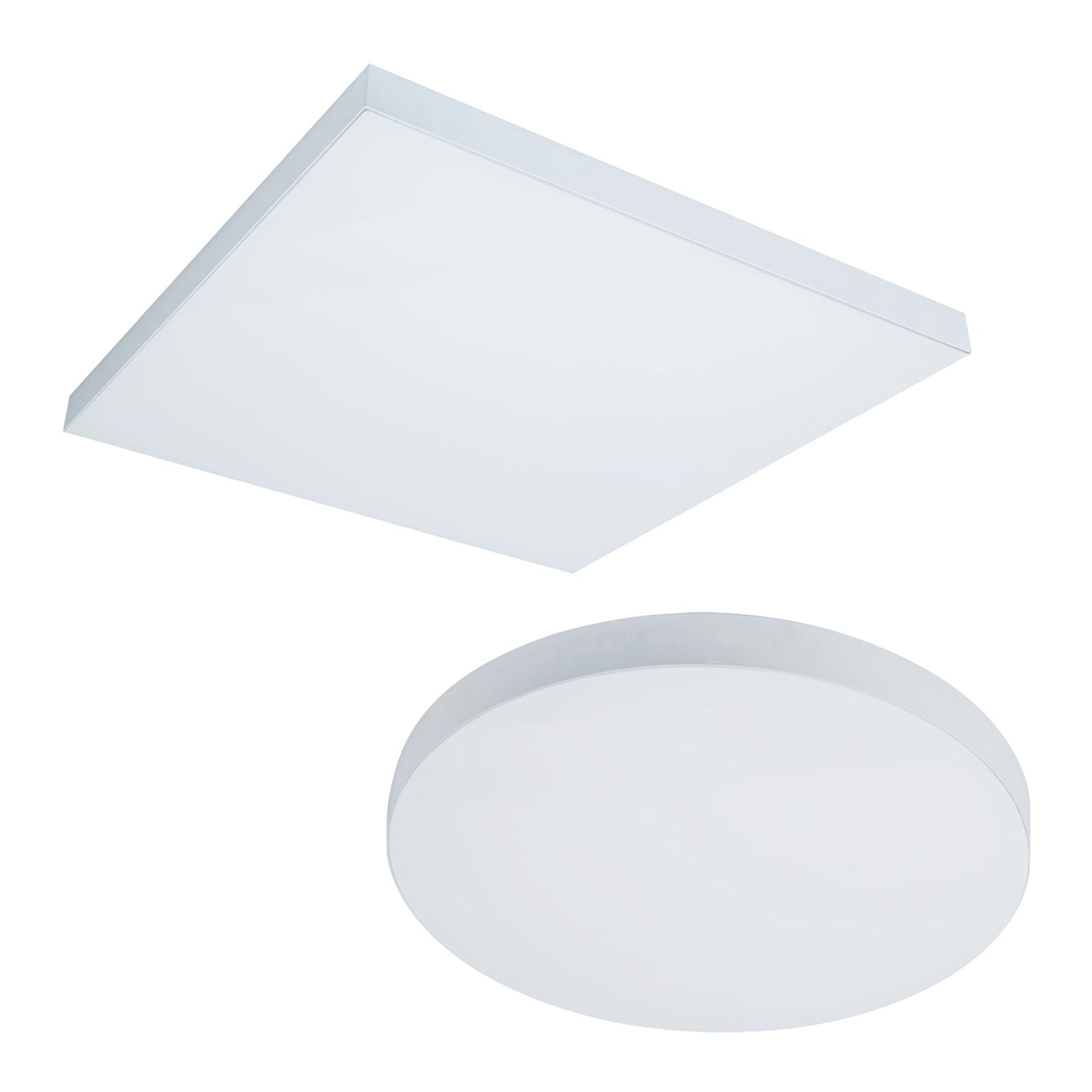

The SMX Family of Edgeless Design Surface Mount products from Cooper Lighting Solutions is available in 4-, 6-, 8-, 14-, and 18-in. round and square sizes. The 4-, 6-, and 8-in. versions boast a low profile of less than 0.65 in. from the ceiling. All sizes support either phase-cut or 0-10-V control options, and each SMX product includes three levels of lumen selection, five CCT selections, and dim-to-warm options. The SMX also includes an innovative mounting frame that twists the fixture into the ceiling providing both wet location and airtight features. The mounting frame also includes tabs that cover both lumen and CCT selection switches when the fixture is locked in place, prohibiting inadvertent changing of the switches during installation.
