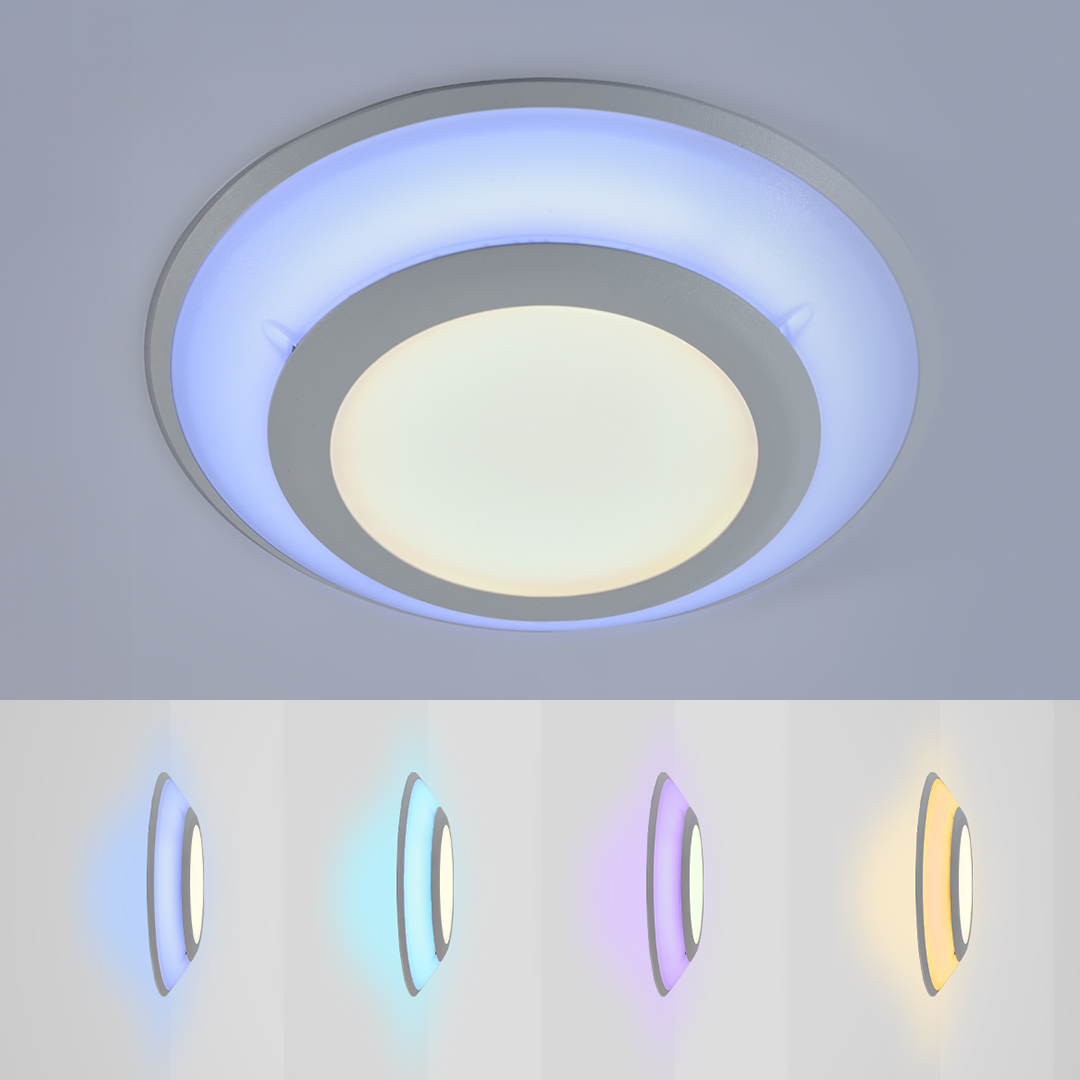

Kenall’s MedMaster Saturn Surface Mount Luminaire is recognized for its dual-light-engine architecture providing independent control of center static-white and perimeter color-changing rings. The 14- and 18-in. diameter fixtures deliver up to 1,800 lumens in exam mode and narrow-spectrum amber or native red in low-light scenarios, meeting ANSI/IES RP-29 for patient observation and supporting behavioral health standards. IK10 and NSF2 ratings ensure durability and cleanability in high-abuse and sterile environments. A built-in 360-deg microwave sensor enables automatic transition between examination and night-light modes.

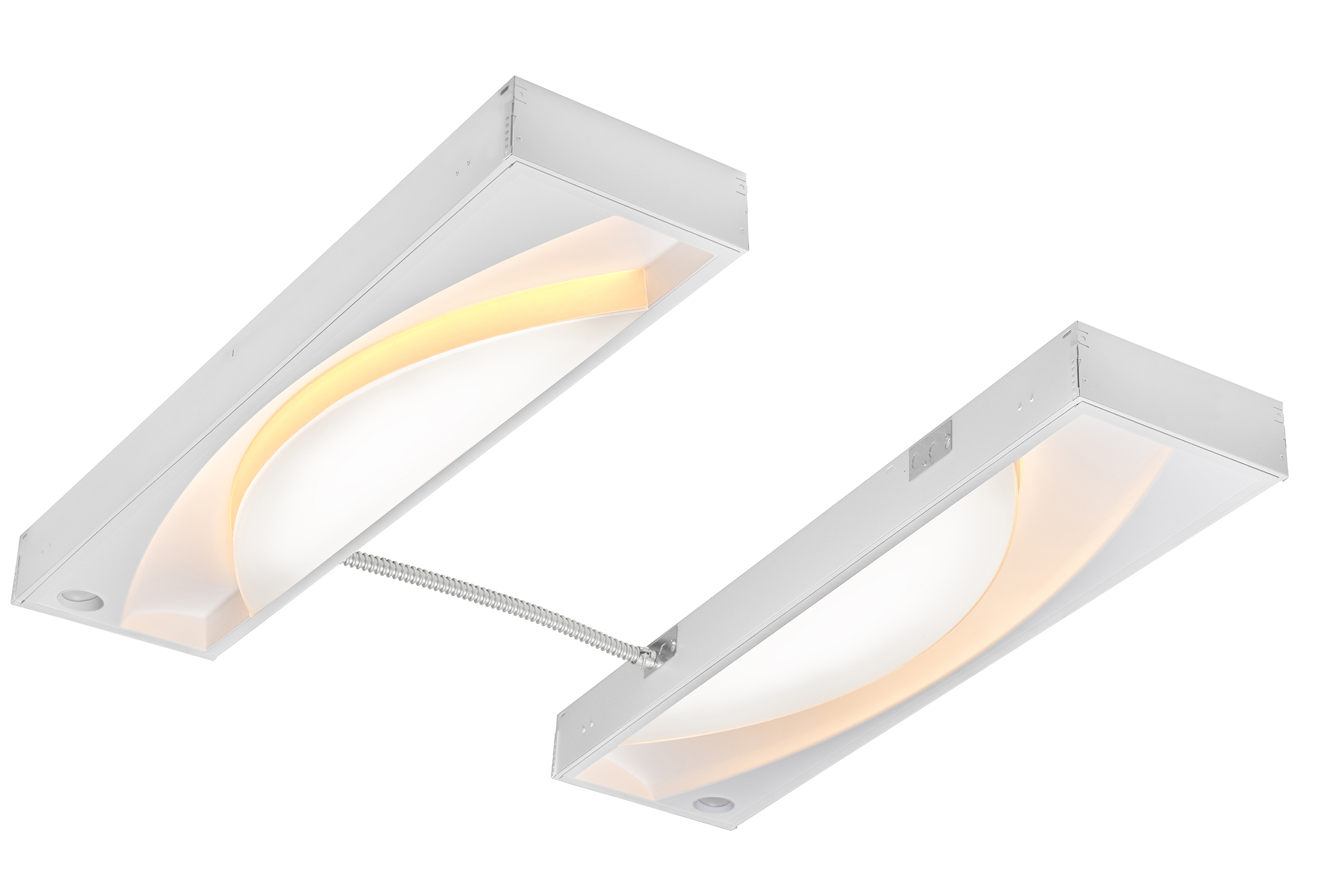

Focal Point’s Saros Duo tandem patient-room luminaire delivers RP-29-compliant indirect ambient illumination alongside two examination modes of 75 fc for regular and 100 fc for high-intensity tasks, and a warm-dim nightlight that eliminates blue-light exposure after hours. The thin, 4-in. profile accommodates shallow plenums, while a patent-pending master-satellite configuration enables a single-point power feed and tool-free, below-ceiling access to drivers and LED boards. An optional pillow-speaker reading light adds patient-activated comfort without additional ceiling penetrations.

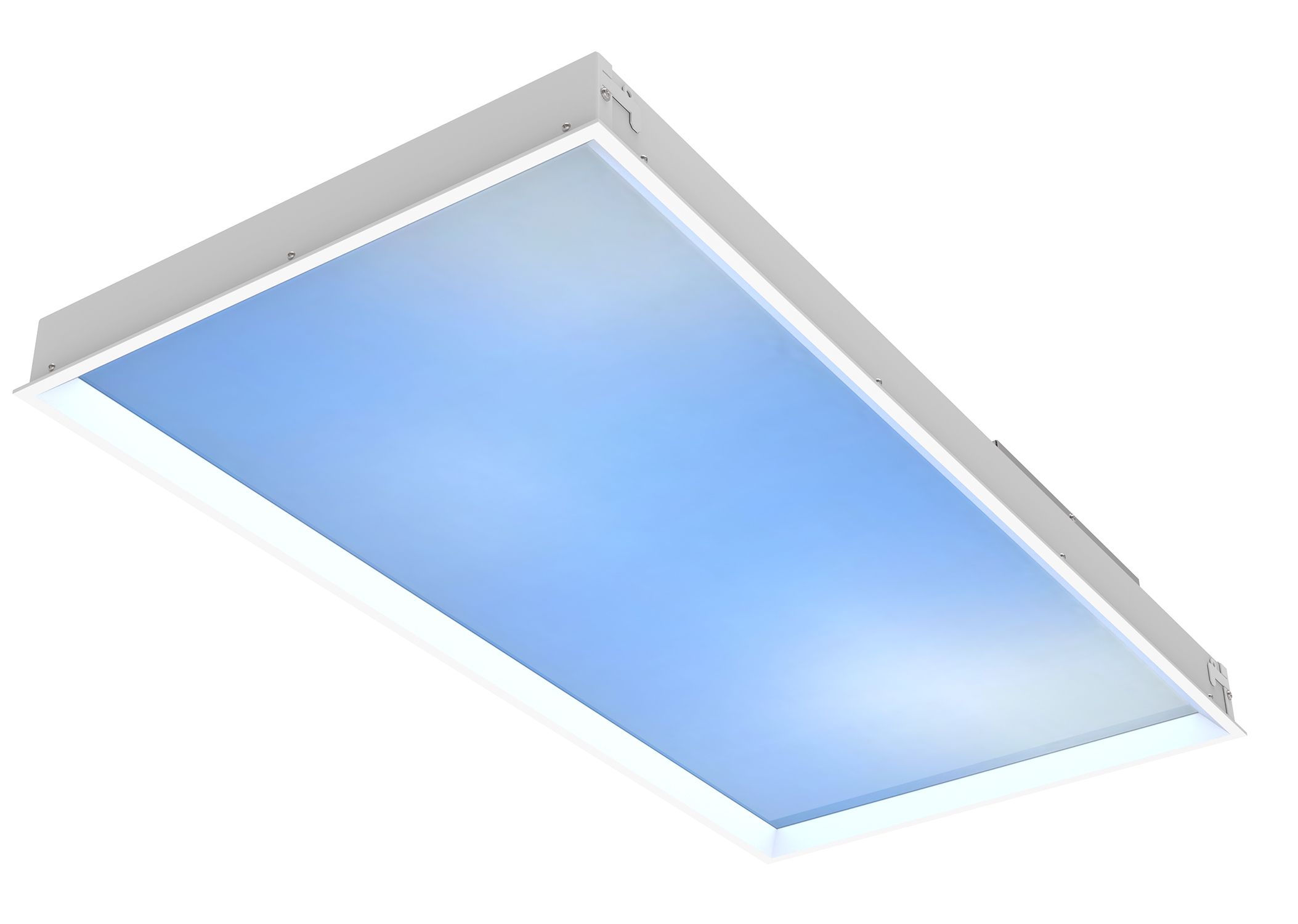

Acuity Brands’ Nightingale Observe cloud luminaire is the first patient fixture integrating a biophilic sky-scene mode with standard exam and ambient settings in a single 2-ft-by-2-ft or 2-ft-by-4-ft recessed module. Four interchangeable “cloud” formations diffuse 3000K to 5000K light at 90 CRI, and a custom sunset-dimming algorithm in sky mode provides circadian support. In exam mode, the fixture delivers 75 fc on the bed plane; ambient mode maintains 10 fc for general illumination. Night-observation mode uses low-glare amber output for safe room checks.

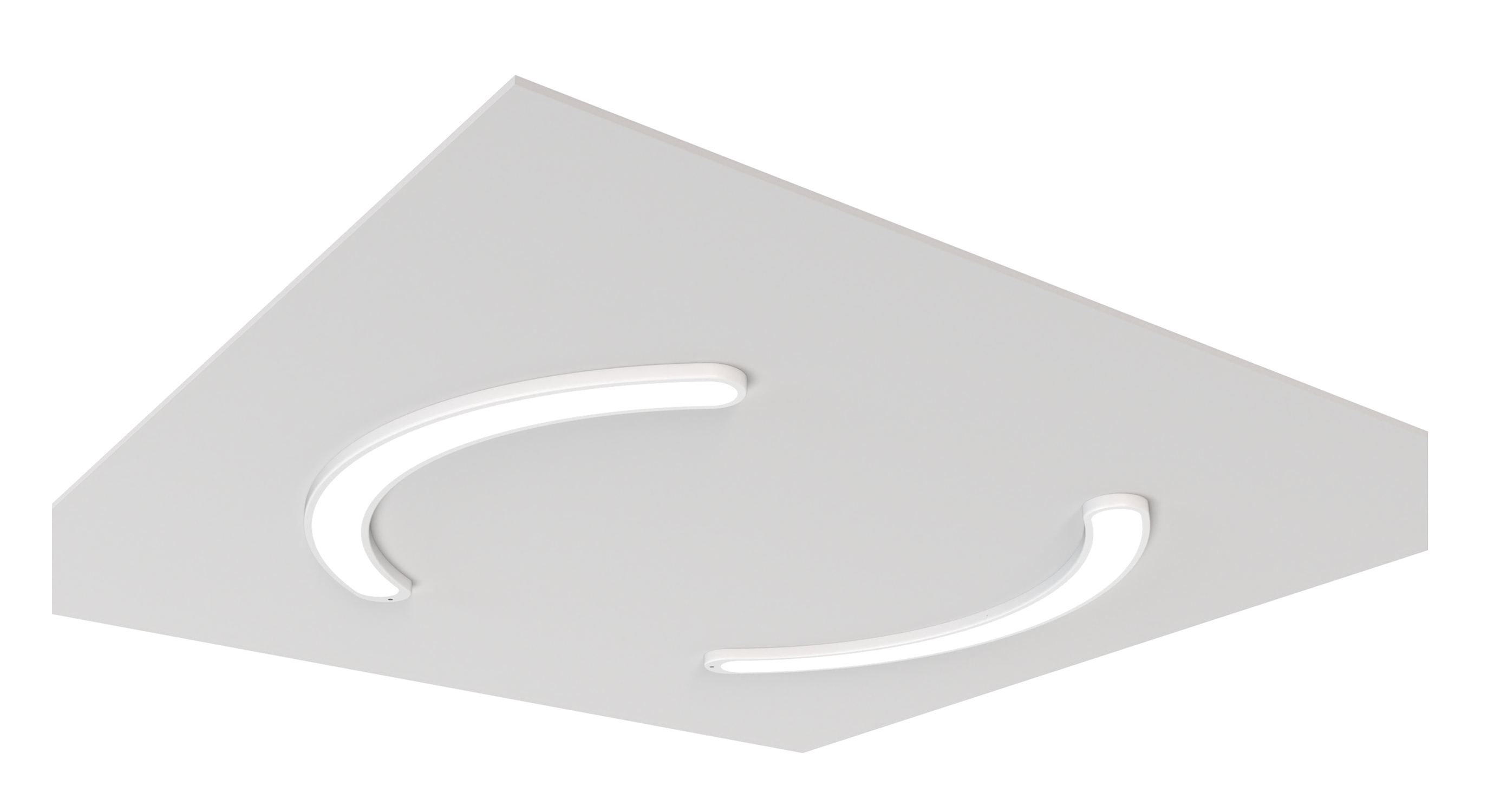

Acuity Brands’ Nightingale Embrace Overbed luminaire is a new form factor that reduces direct glare by positioning curved light banks outside the patient’s direct line of sight. Meeting ANSI/IES RP-29 for exam and ambient modes, Embrace also offers a night-observation setting and an optional adjustable reading lamp controlled via a pillow speaker. A single large surface-mount housing simplifies deployment in grid or drywall ceilings, while an antimicrobial matte-white finish and NSF2 rating ensure patient safety and easy cleaning.

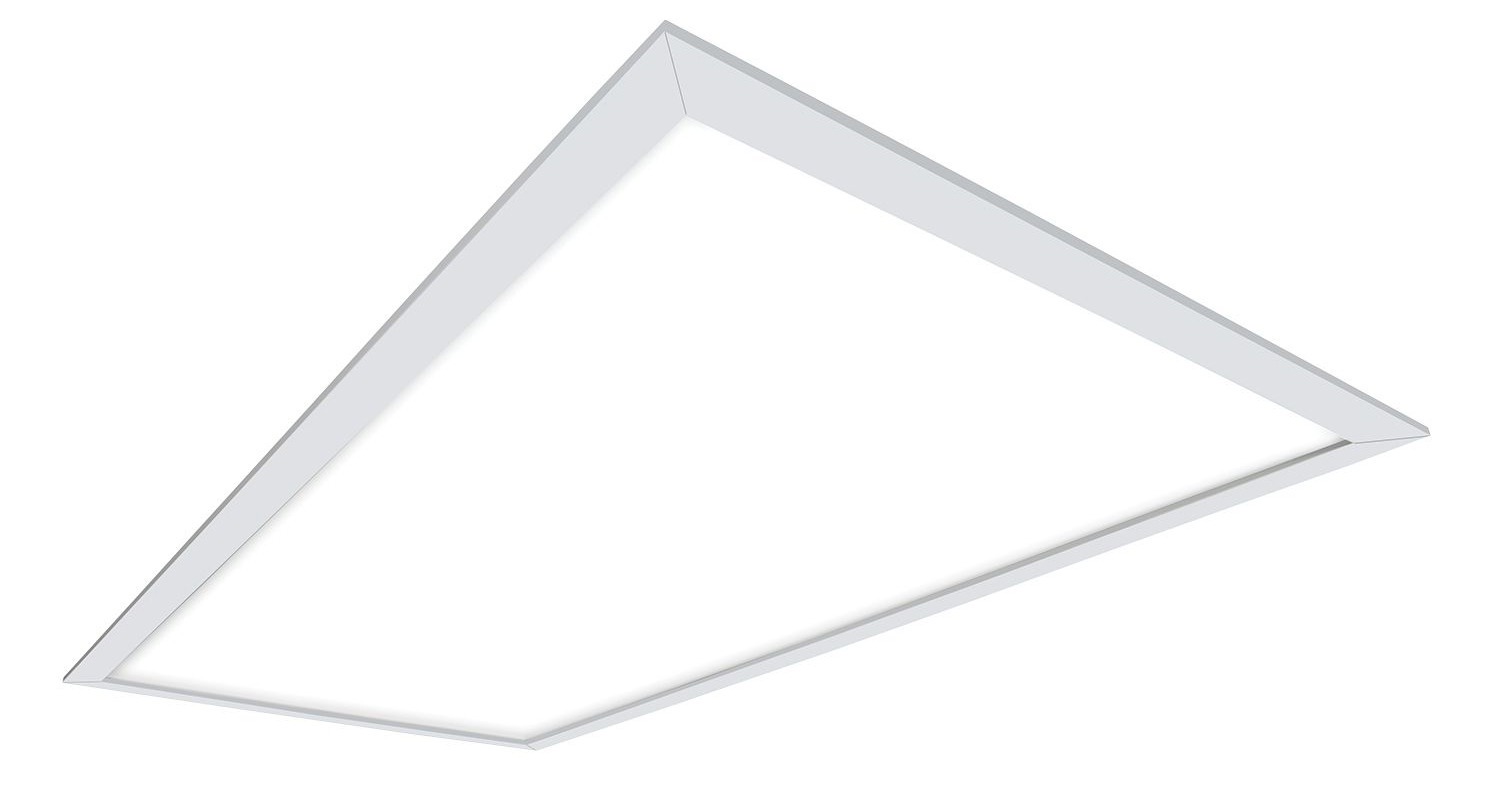

Cooper Lighting Solutions’ FLR and FLR2 Fully Luminous recessed panels are the first flat-panel luminaires designed to satisfy combined requirements for medical, behavioral health, and high-abuse spaces. Available in 2-ft-by-2-ft, 2-ft-by-4-ft, and 1-ft-by-4-ft formats, these panels feature a clear bottom lens with IK10 impact resistance, IP65 sealing, and cleanroom ratings up to ISO 8. The product offers efficacies up to 125 lm/W, and 0-10-V dimming to 1%. Optional motion and emergency battery modules provide scalable solutions for corridors, patient rooms, and de-escalation areas.

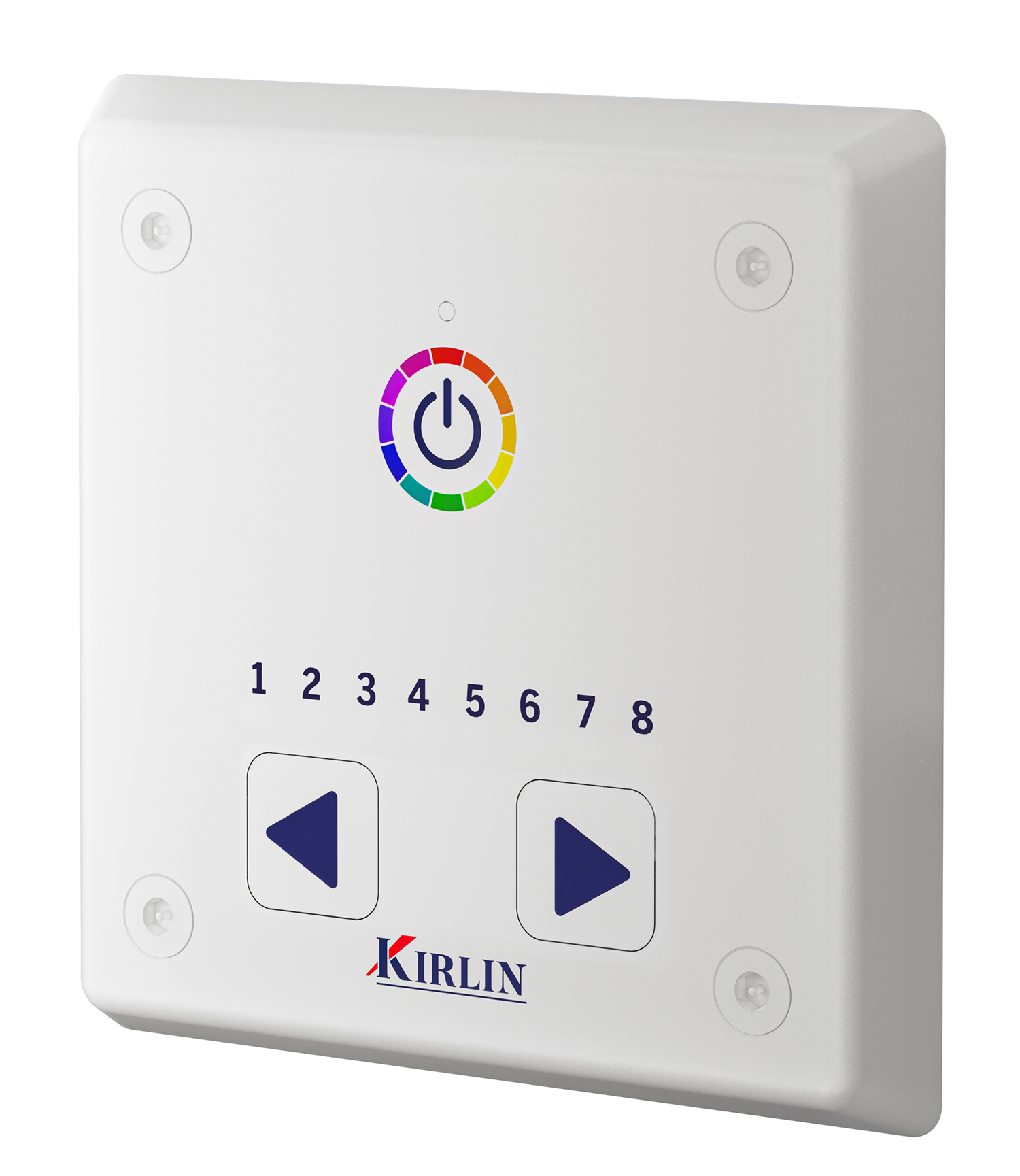

Kirlin Lighting’s Empower Wall Stations are the first standalone DMX control units approved for behavioral health environments. Offering ligature-resistant construction with IK10 impact rating and optional BioGard antimicrobial finish, Empower DMX features eight pre-programmed scenes across a single zone, enabling intuitive color-change and white-light dimming without external drivers or networks. The 0-10-V variant provides on/off and dimming from 100 to 1% via touch-sensitive buttons, with no external relays required. Both versions meet New York Office of Mental Health mounting and finish criteria.
